Spline Editor
The Spline editor shows the Key Frames on a Channel as splines along the time-line.
The Key Frames are presented vertically in the Spline editor according to the properties they possess. The horizontal scaling represents the time value.
Tip: The time value can be set to either seconds, frames, or fields from the Stage Editor Bar.
The Time-line Marker defines the current time, and the Scene Editor shows the animation accordingly.
It is possible to drag Key Frames in the Spline Editor both horizontally (changing the time) and vertically (changing the value) at once.
This section contains information on the following topics:
Spline Editor Procedures
To Enable/Disable the Spline Editor
-
From the Stage Editor Menu select Spline View, or
-
Hold the pointer over the Stage and press <Ctrl+3>.
To Enable the Spline Editor Together with the Dopesheet Editor
-
From the Stage Editor Menu select Dope/Spline View, or
-
Hold the pointer over the Stage and press <Ctrl+4>.
To Resize the Height or Width of the Spline Editor
-
Height: Drag the horizontal separator between the Dopesheet editor and Time-line Marker.
-
Width: Drag the vertical separator between the Stage Tree Area and Stage Editor.
To Switch Between the Various Splines
-
Use the Show Spline 1,2, and 3 buttons from the Stage Editor Bar, or
-
Use the keyboard shortcuts <Ctrl+Z>, <Ctrl+X> and <Ctrl+C>

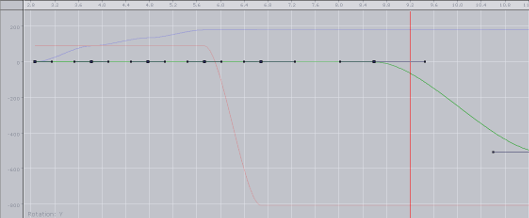

Example of axes X, Y, and Z in the Spline editor
To Move Key Frames in the Spline Editor
-
Select the required Key Frame and drag it around.
-
To change only the position on the time-line or the value, press <Shift> to lock the axes. Keep <Ctrl> pressed while you drag the Key Frame if you want to snap to grid along the time-line.
You can move a Key Frame in the spline editor, so either the position on the time-line (left and right) or the value stored (up and down) in the Key Frame will be changed.
Editing Handles
As each Key Frame on the spline has two handles, moving them is the most easy way to edit the curve. To edit a handle left-click it and drag it around. You will see that the spline will reflect your movement.
By default you move the handles proportional this way. This means if you change the handle on one side, the one on the other side will move too. If you want to only edit the handle on one side, you need to left-click the required handle. Keep the left button pressed and press <Ctrl>. If you drag the handle, only the one you drag right now will move and the other one will stay. This “single handle mode” will be enabled for the Key Frame as long as you press <Ctrl>.
Furthermore you can use the buttons in the main menu to edit the handles at a Key Frame. To do so select the Key Frame you want to change the handles in and select the action in the main menu. For ease of use multiple Key Frames can be selected.
-
Set left and right spline handles in selected Key Frame to linear. -
Set spline handles in selected Key Frame to smooth left and linear right. -
Set spline handles in selected Key Frame to linear left and smooth right. -
Set left and right spline handles in selected Key Frame to smooth. -
Set left and right spline handles in selected Key Frame to tangential.
Position in the Spline Editor
If you animate a position, there are much more considerations to make.
Rotation in the Spline Editor

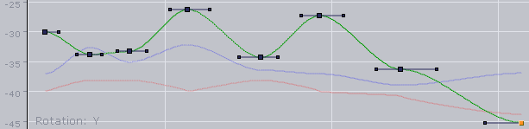

If you have animated the rotation, you can rotate about up to all three axes at the same time. In the spline editor three different splines will be shown, one for every axes. The red one is for the X-axis, the green one for the Y-axis and the blue one for the Z-axis. For ease of use in the lower left corner you will find indicated which axis is currently selected.
Scale in the Spline Editor

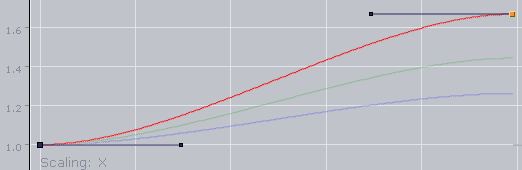

If you have animated the scale, you can scale along up to all three axes. In the spline editor three different splines will be shown (when Prop or Single is selected), one for every axis. The red one is for the X-axis, the green one for the Y-axis and the blue one for the Z-axis. For ease of use in the lower left corner you will find indicated which axis is currently selected.
Material in the Spline Editor

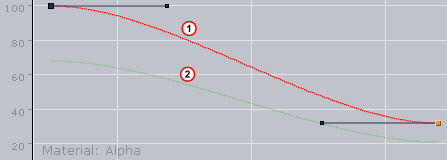

If the material has been animated, in the spline editor two different splines will be shown. The red one is for the alpha value, the green one for the shininess. For ease of use in the lower left corner you will find shown which parameter is currently selected.
Additional Best Practices for the Spline Editor
Normally for each channel only one spline is shown in the spline editor. But there are animation channels where more splines are available for editing. As you can only edit the Key Frames/handles of one spline, you must use the number keys in the Stage Editor Bar to select the required spline.
Pressing <Shift> while moving a Key Frame in the Spline Editor enables you to drag it only horizontally or vertically, but not both directions at the same time. Pressing <Ctrl> while moving a Key Frame will enable the Snap to Grid function, allowing the Key Frame to be placed only at certain time-line intervals. For more information (see Stage Editor Bar).
When animating certain channels, such as scaling or rotation, up to three splines will be shown in the Spline editor, each describing the state along one axis, either X, Y, or Z. For a better overview, different colors are used; red for X-axis, green for Y-axis, and blue for Z-axis.Every spline contains various Key Frames with handles.
Example of Key Frame and handle tool tips
If the Show Info option is enabled in the Stage Editor Bar, placing the pointer over a Key Frame or handle will show a tool tip with status information about time-line and value.
