Hard Drive Video Clips

All Viz Artist/Engine machines, as well as Vizrt clients with preview, for example, Viz Trio or Viz Weather, come with a mapped video drive (D:). This drive is configured for faster access and speeds. This is where all video clips should be stored.

A second or third video clip directory can be added in Local Settings of Viz Configuration (see the Viz Engine Administrator Guide), which can be used for:

• A Dual Channel and Trio One Box Configuration, or

• With any Viz Artist/Engine configuration for the selection of a secondary video clip directory if a directory fails. If the file path for a video clip is set to <clip_root>, and the first directory falls over the same video file is searched for and used, from the next directory in the Clip directory list. If, when multiple Clip directories are selected, the Clip Name box is used to search for a video, the search defaults to the last used directory.

Viz One Video Clips

Video clips can also be transferred and downloaded from a Viz One. To do this Viz One must be integrated with a Viz Engine. See the Viz One page in the Configuring Viz section of the Viz Engine Administrator Guide and the Viz One Deployment Guide.

Video items

Video clips are also stored in the Graphic Hub (see Working with Video Items).

Dual Channel and Trio One Box Configuration

When more than one directory path is selected, for example, D:\AEClips; D:\DecoClips, etc., in the Clip Name box change the file path to <clip_root>. The file name is then searched for, in the selected directories (selected in the Viz Configuration), one after the other, for stored video clips with the same name.

Variables Used in File-name Expansion

To Playback Clips with VBI in a Separate File

1. Make sure that VBI is set to On for both the Clip Channel (Video Input: Clip Input) and the Video Output (Matrox).

2. For each clip channel, make sure that the Video Input and Output Format resolutions are the same.
   The VBI clip contains only VBI information. The size of the clip must match the maximal total lines for VBI in this resolution:

   • NTSC: 32

   • PAL: 34

   • 720p: 19

   • 1080i: 30

   • 1080p: 35

Using VBI embedded in a full size clip is not supported as separate clip. This is only supported when played as the main clip.

Video Clip Playback General Guidelines and Considerations

For video clip playback methods, consider these general guidelines:

• The selected video clip must have the same frame rate as the clip channel. You can mix different Output Formats and Video Input Formats with different resolutions, but you must make sure to use either progressive or interlaced for Input and Output. You can play, for example, a 720p clip with an Output format of 1080p, but you cannot mix and 720p with a 1080i format:

  • Video Input: Clip Channel 1: HD 1080i

  • Output Format: 1080i



    Each available Clip Channel can be configured for independent resolutions, providing the designer quick access to a range of options. These settings are configured in the Video Input section in Viz Config. Please refer to the Video Input page in the Configuring Viz section of the Viz Engine Administrator Guide.

    Tip: The Media Asset Manager provides a useful tool-tip when hovering the mouse pointer over Clip Channel media assets, displaying the resolution configured for the Clip Channel in use.

• Make sure that the correct container and codec is selected (see Supported Codecs).

• Video clip playback can be applied through either DVE or Texture.

• To be able to use a Live input channel, a Clip channel or a Stream channel, they first have to be set to active in Video Input (see the Configuring Viz section of the Viz Engine Administrator Guide).

• If alpha is required for a video clip, click Config and configure the alpha in Video Input(see the Configuring Vizsection of the Viz Engine Administrator Guide). Enable w/Alpha when alpha is required in video clips. Either two clips, or one clip that contains both the fill and key, are required. If there is only one clip, that contains the fill (without a key), the key is created dynamically and is fully opaque. For the naming convention of two clips, the alpha/key clip must have the same name with an attached _key before the file extension, this means if the main/fill clip is named example.mxf, the alpha/key clip must be named as follows: example_key.mxf.

• The Matrox Clip Player supports TDIR (Time Delay Instant Replay), which enables Viz Engine to play back clips while they are still being written by Viz One. When a clip is played, with TDIR support enabled, looping is not enabled for this clip. Viz Engine determines automatically if it needs to set TDIR support on, or if the clip is already fully loaded.

• BG Graphics are always the lowest in the stack, even below zero, and FG graphics are assigned a default of 100. Please note that priority can not be assigned to BG Graphics.

To Play a Video Clip as Texture

1. Click on Built Ins.

2. Click on Media Assets (MA).

3. Right-click on a Clip Channel, and select Add Clip<1> as Texture (1).

   • The Texture button in the Scene Tree panel (Media Asset Manager) is automatically selected (2)

   • The selected Clip Channel is added to the Scene Tree and a new Container is created (click Tree to view)


     Tip: The Clip<1> Channel can be made active or inactive. Toggle the active/ inactive button (3).

     Tip: The Clip<1> Channel can also be dragged to the Scene Tree, where it is added as a Texture in a new Container.

4. Click on Clip<1> Channel, in the Scene Tree panel (Media Asset Manager) Texture view, to open its properties panel.

   Tip: Right-click the Clip<1> icon in its Container. Select Show settings of Clip<1>.

   Tip: Click the icon in the Scene Tree to view Media Asset properties at any time

5. Select the required Keying Mode (4 (see Keying Mode)).

6. Add a video clip:

   • In the Clip Name (5) line, click , or

   • Drag a Video Clip item from the Server Panel, or

   • Click , and select a video clip to import

     Note: To transfer and download videos from Viz One, Viz One must be integrated and configured with Viz Artist/Engine.

7. Configure the video clip playback as required.

8. Click Play (5) to test the video clip.

   Note: Matrox Card Only: A green ‘traffic light’ shows that the video clip has loaded successfully. A gray ‘traffic light’ shows that no video clip has been loaded. A red ‘traffic light’ shows that there was an error when the video clip was loaded.

   Note: Click the expand button to show addition information. If the clip loaded successfully, clip details are shown. If the clip did not load successfully, additional errors are shown.



To Play a Video Clip as DVE

1. Click on Built Ins.

2. Click on Media Assets (MA).

3. Right-click on the required Clip Channel.



4. Select Add Clip<1> as DVE (1).

   • The DVE button in the Scene Tree panel (Media Asset Manager) is automatically selected (2).

     Tip: The Clip<1> Channel can be made active or inactive. Toggle the active/ inactive button (3).

     The Scene Editor shows a blue rectangle, which shows that the live input channel is correctly configured for live video.


5. Click on the Clip<1> Channel to open its properties panel.

6. Adjust the parameters in the DVE control panel, as required.

7. Add a video clip:

   • In the Clip Name (5) line, click , or

   • Drag a Video Clip item from the Server Panel, or

   • Click , and select a video clip to import

     Note: To transfer and download videos from Viz One, Viz One must be integrated and configured with Viz Artist/Engine.

8. Configure the video clip playback as required.

9. Click Play (4) to test the video clip.

   Note: Matrox Card Only: A green ‘traffic light’ shows that the video clip has loaded successfully. A gray ‘traffic light’ shows that no video clip has been loaded. A red ‘traffic light’ shows that there was an error when the video clip was loaded.

   Note: Click the expand button to show addition information. If the clip loaded successfully, clip details are shown. If the clip did not load successfully, additional errors are shown.



Video Clip Animation in the Stage

Video can also be played out as part of an animation. This is useful when video clips are required to interact with animation.

To Animate a Video Clip

1. Before a video clip can be animated, it must first be applied as a Texture or DVE.

2. Click Stage.

3. Click the New Director button.

4. Right-click on the Director.

5. Select Clip > Clip1 > Clip



6. In the Clip1 channel, click in the dark blue area (2). The Clip Key Frame Editor opens on the far right.

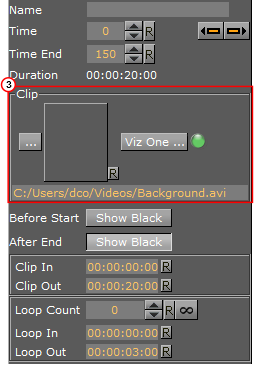

7. Add a video clip (3):

   • In the Clip Name (5) line, click , or

   • Drag a Video Clip item from the Server Panel, or

   • Click , and select a video clip to import

   • Click to specify a certain time/length for your clip. This is useful when loading clips from an external control application via Viz One. In this case, the lock clip length acts as a placeholder, but does not change the clip length automatically after loading.

     Note: To transfer and download videos from Viz One, Viz One must be integrated and configured with Viz Artist/Engine.

     Note: Matrox Card Only: A green ‘traffic light’ shows that the video clip has loaded successfully. A gray ‘traffic light’ shows that no video clip has been loaded. A red ‘traffic light’ shows that there was an error when the video clip was loaded.



     Note: This does not necessarily have to be the clip enabled in the previous procedures. It can be any video clip that Viz Artist can play.

     IMPORTANT! If there is a conflict, the last clip selected, whether in the Stage or the Scene Settings, is the one to play, with overriding effect.

8. Configure the Clip Key Frame Editor as required.

To Play a Single Clip in the Stage with Stage Loop

1. Set a clip in the stage as described in To Animate a Video Clip.

2. Click Clip, in the Stage Tree.

3. Set the clip to loop a specific number of times or infinite.



To Play Multiple Clips in One Channel

1. Add a clip to the stage as described in To Play a Single Clip in the Stage with Stage Loop.

2. Set the time indicator to a position after the first clip Key Frame.

3. Click to add a Key Frame.

4. Select a clip for the new Key Frame (see To Animate a Video Clip). Show black rules for pauses between clips:

If Pending is Active (which is recommended) subsequent clips are loaded into the pending clip player and are swapped at the correct time. This feature enables the clips to concatenate seamlessly. However, when pending support is set to Inactive, black frames are shown until the clip is ready to be played (see the Configuring Viz section of the Viz Engine Administrator Guide).

To Play Multiple Clips in One Channel with Stage Loop

1. Set multiple clips in the stage as described in To Play Multiple Clips in One Channel.

2. Set the clips to loop. Click the corresponding entry in the Stage Tree.
   All Key Frames including the pauses in between and before are taken into account during play back, for example, pause - clip 1- pause - clip 2 loops as such.

To Play Single and/or Multiple Clips in Multiple Channels

This is a combination of the use cases described above, with the clips used on several channels.

Video Clip Queue

Video clips can also be queued, providing automatic playback of a series of clips. If no clip is playing at the moment of clip queue creation, playback of the first clip in the queue starts immediately. All other clips are played in the sequence they were added to the list. By default, every clip needs to be played out manually, although it is not required to set their names again. This behavior can be overridden by clicking the Autorun button, setting it to On.

The current state of the auto-play flag is stored with every queued clip, and can thus be used on demand.

Video Clip Queue Commands

Commands (n is the clip channel):

Example Clip Queue Commands
