The new Lens File Editor is a web based application hosted by Tracking Hub. It runs independently of Studio Manager or a Viz Engine. To use the Lens file editor, use one of the supported browsers and navigate to http://trackinghub_hostname:9090.
Note: The port needs to be configured first in Studio Manager, see Lens File Editor#Port Configuration.
Alternatively, click on the Lensfile Editor Icon in the toolbar.
The web browser needs to support WebSockets, Canvas Rendering and WebGL technologies. Please also make sure the configured port is not blocked by any firewall.
The Lens File Editor is currently supported on the following browsers:
Chrome
Firefox
Safari
Port Configuration

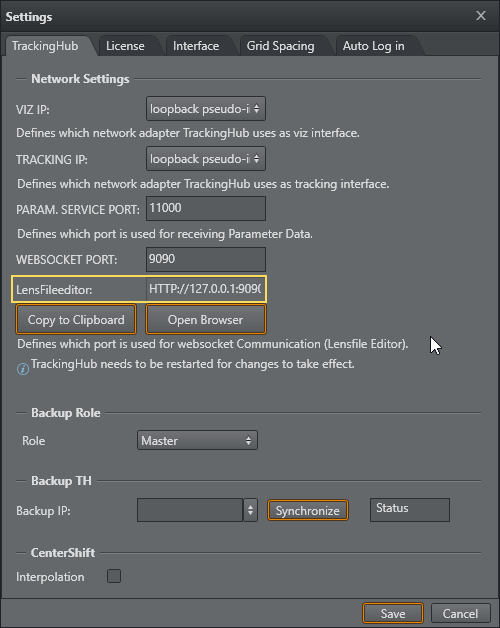

The port used by the Lens File Editor needs to be configured in the Studio Manager.
Info: Any change of this value is applied immediately without pressing the Save button.
New Lens File Format
As the HTML based LensFileEditor uses groups for related parameters, the format of the lens file had to be changed. The new format is human readable XML.
Conversion from the old file format, which was used by Viz Engine and older Tracking Hub versions is done by Tracking Hub during load time. All old lens files found in C:\ProgramData\vizrt\VizTH\Lensfiles are automatically converted to the new file format. The original files are moved to a folder named C:\ProgramData\vizrt\VizTH_ori\Lensfiles\old_lcb. In Tracking Hub, it is then possible to add a lens file rig, which interprets the new file and send the data to Viz Engine.
The Main Window and Contained Areas

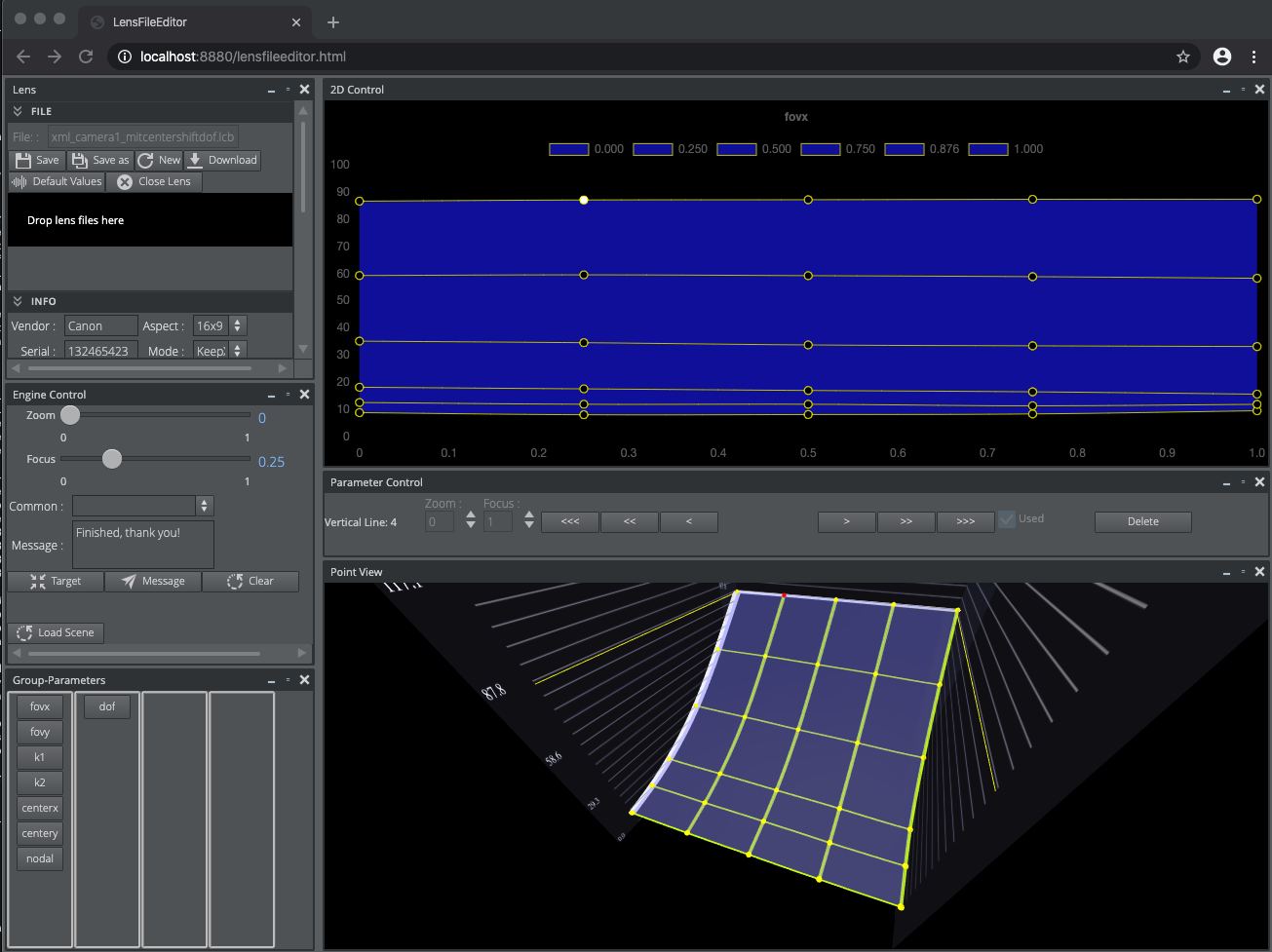

The main window consists of six regions or portals and several modal windows.
Camera Selection

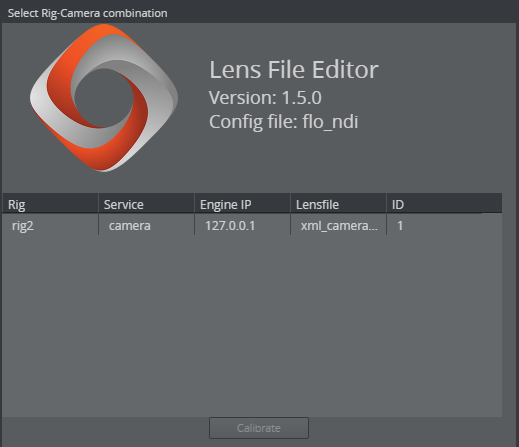

After the connection to Tracking Hub is established, the Lens File Editor shows all lens files, ready to be calibrated. The Rig, Service and Engine IP columns identify uniquely the Rig/Camera combination to be calibrated. The lens file column shows the name of the lens file which is loaded in the rig structure. The ID is mainly the ID of the camera service.
A lens file can be attached to more than one service. As soon as the user selects a Rig/Camera combination, a copy of the lens file is loaded into the selected service. All other camera services are not affected.
As soon as a combination is selected, it is locked in Tracking Hub and can not be calibrated from another browser instance. The lock is released as soon as the browser window closes. So it is possible to calibrate different lenses at the same time, but not the same rig/camera combination.
To start a calibration, select one of the table rows and press Calibrate. The window disappears and the lens data is loaded into the window.
If the lens file string is empty, a rig with no selected lens file is in the config. If this camera is selected, Tracking Hub loads a template lens file xml_empty.lcb and sends raw file to the editor. The Save button is disabled and it is not allowed to overwrite this template. The user must click save as and deliver a new file name.
Lens Portlet
The Lens Portlet is structured into three sections.
File Section

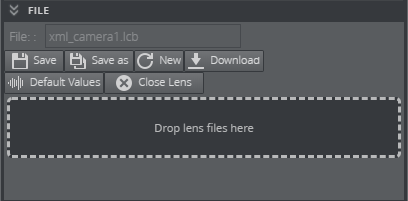

The Save button forces Tracking Hub to store the lens data into the lensfiles/lensfile folder of the configuration directory. When selecting a combination of Rig/Camera, the name of the lens file is added into the File text field. When pressing Save, the loaded lens file is overwritten. Save As opens a window where the user can enter a new lens file name.

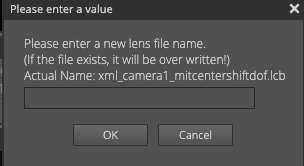

After pressing OK, the actual lens is saved on Tracking Hub and automatically loaded. You need to save the configuration in Studio Manager to make the changed lens file permanent in the configuration!
New: Closes the current lens file and allows the user to start with a complete new calibration task. To generate the approximate field of view values you need to enter the focal length and multiplication values in the info section and then press Default Values to calculate an approximation.
Download: Exports or shares your lens file. This sends the XML file from Tracking Hub to your local computer.
Default Values: Starts from the beginning by resetting all values back to the default ones. The filename stays the same.
Close Lens: Releases the file lock from this lens and close the calibration process. The user is presented with a dialog to select a new rig.
If you want to use an existing lens file, you can upload it to Tracking Hub by using the Drop zone. Simply drop a XML lens file to use it inside Tracking Hub. After dropping a XML file to the drop zone, a dialog pops up showing the file content as RAW XML file. A user can format it by using the Format button once.
Note: You need to press the Reload button in Studio Manager to select a new created lens file.
Info Section

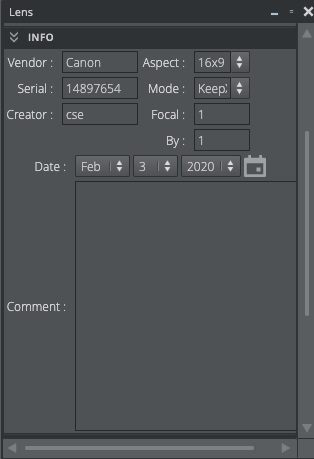

All fields should be filled with care, especially the Focal Length and Focal Multiplier fields. In case of a new lens, the Lens File Editor calculates base FoV values out of this information. The dialog only accepts float numbers in the Focal Length and Focal Multiplier fields. The Aspect mode defines if the lens is used as 16x9 of 4x3.
For clarification: Tracking Hub calculates the field of view X value from field of view Y. During calibration, this value defines how Tracking Hub adjusts these values during dragging a point. Later on and during operation, this value is defined in the lens file rig of Tracking Hub.
Settings Section
In the settings section the user can adjust the point size of the 3D an 2D view.
This calibration scene is not installed with Tracking Hub and has to be added manually if needed. Its location path can be set in the UI field. Best practice is to enter the UUID of the scene there. This is the scene loaded when using the Load Scene button in the Engine Control Section.
By pressing Save Settings, these settings are saved as cookie in your browser.
Group Portlet

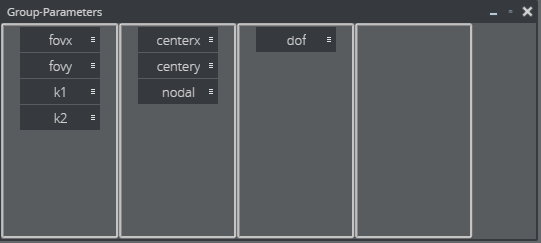

The new Lens File Editor introduces the new concept of parameter groups. The old Lens File Editor had only the principle of measure points.
While field of view (FOV) and deformation parameters k1 and k2 have to be adjusted for even minor zoom and focus changes, center shift and nodal point values don't show this sensitive behavior. For these parameters only a few calibration points are needed, whereas for FOV at least 25 (5x5) or more measure points are necessary. These points are defined by the crossing of horizontal and vertical zoom and focus lines which can be moved, deleted and inserted at any time during calibration.
By moving a parameter from a 7x7 group into a 2x2 group, only four parameters are mapped into the new group.
Tip: Always create the groups before you start calibration.
Engine Control
The Engine portlet works in combination with the calibration scene.

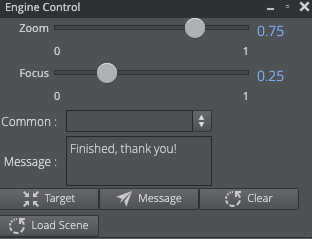

It is also possible to select one of the common messages in the Common drop box or enter any other message in the Message text field. By clicking the Send Message button, the message is displayed on the Viz Engine screen. The message can be cleared by clicking the Clear button.
The Load Scene button forces Viz Engine to load the scene, the user entered in the Calibration Scene field of the settings section.
Important: The calibration scene is for the Viz Engine Classic Render Pipeline only. Please make sure your scene uses a Classic Render Pipeline scene in the Main layer.
Calibration Scene
Viz Tracking Hub comes with a default calibration scene (as viz Archive). This scene has been designed to be used with the Lens File editor and allows interaction with the person operating the camera.
Info: The archive of this scene is located on the FTP Tracking Hub download folder.
Info: The scene is loaded into the Front Layer of Viz Engine by default.
The scene must be imported into the database and then loaded into the Front Layer of Viz Engine. In combination with the Engine Control portlet, the person running calibrating the lens can communicated with the camera operator.

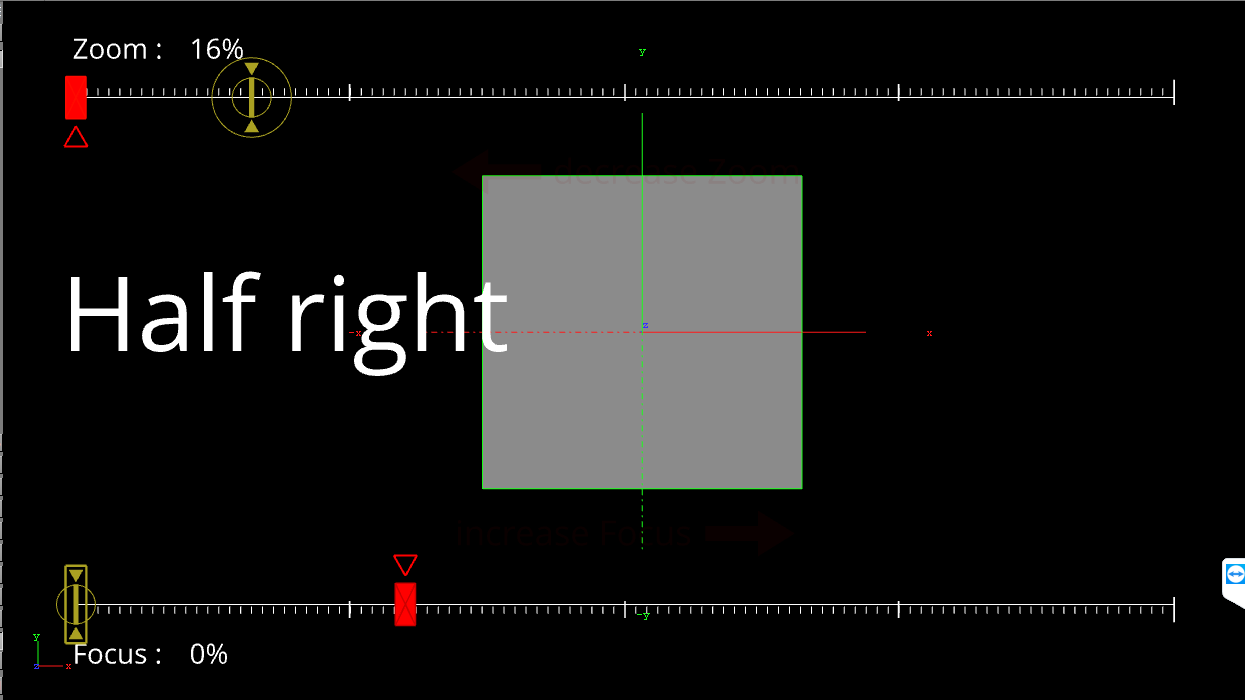

This special scene shows the target points that need to be calibrated by changing zoom and focus values and visually assist the operator. New target points can be sent to Viz Engine using the Send button. Whenever a new point is selected, whether in the 2D or 3D portlet, the new zoom and focus values are set in the Zoom and Focus fields of the Engine portlet.
Parameter Control and Views
The Parameter portlet and the 2D and 3D views work close together. Whenever a point or line is selected in the views, the parameter control changes to the selected value and reflects all possible input on the selected objects.
The 3D View Control adjusts the minimal, maximal and scale value of the displayed data in the 3D View. Usually, these values don't need to be changed, because the 3D view is linked to the 2D view. In rare cases, if the user wants to inspect a special point or region of the lens, these values can be used.
Min: The minimum, bottom of the displayed data.
Max: The maximum, top of the displayed data.
The 2D View Controls the user can select the diagram type of the 2D display. Type can define two values: Zoom and Focus:
Focus: The X axis defines the focus range (
0to1), while the Y axis shows the value of the calibrated points.Zoom: The X axis defines the zoom range (
0to1), while the Y axis shows the value of the calibrated points.
During calibration the focus diagram is the preferred one.
In case of a selected point, the value of the point can be modified. The modify divisor defines the amount of change, when the user clicks on the up and down button of the value. The base of this value is defined as the zoom area in the 2D and 3D view. 10 means, that the value is increased or decreased the zoom are divided by 10, 100 or 1000. This is valid for line movement as well.
A selected line can be moved between its left and right, or upper and lower neighbor. The Modify Divisor again defines the step size of the movement.
As soon as a point has been modified, the point is displayed in yellow and its value is used in the spline interpolation. This yellow state can canceled by unchecking the Used checkbox. Unchecking Used activates the blue state of the point and its value is defined from the calibrated points around.
3D View

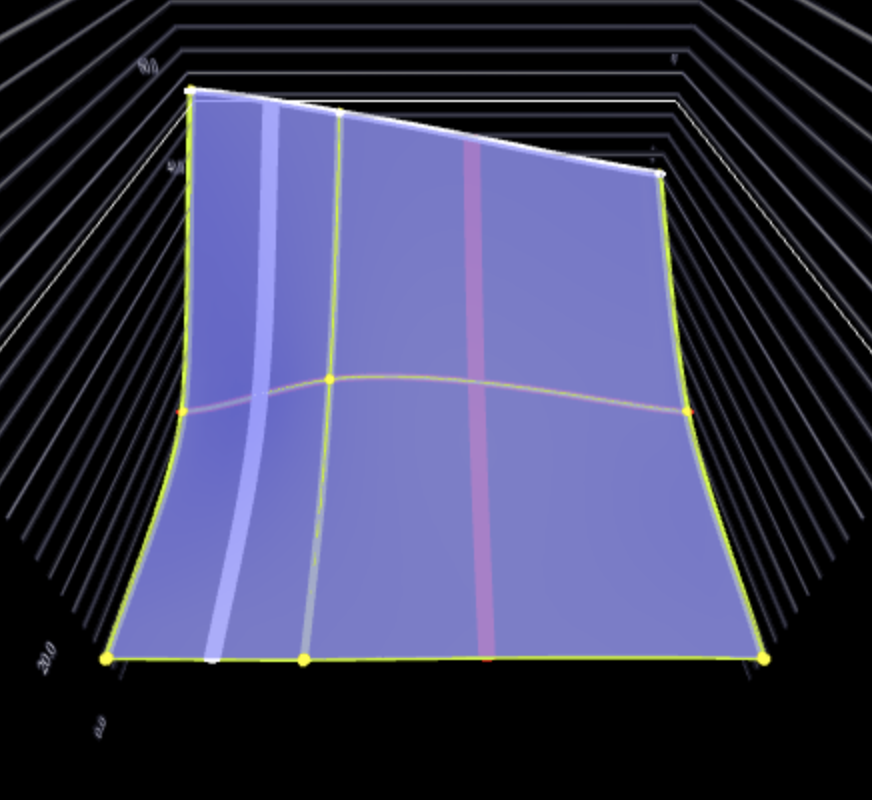

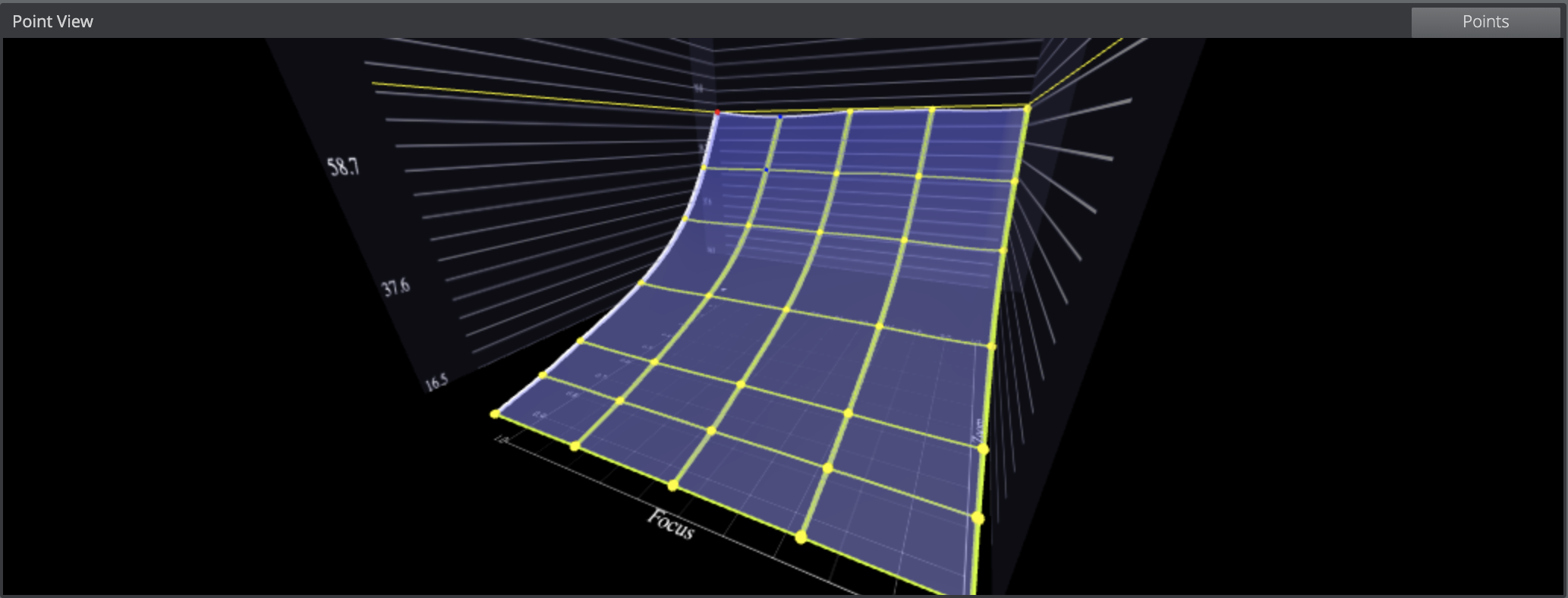

The 3D View shows the lens in a 3D Diagram. Focus is drawn in the X-Axis, Zoom in the Z-Axis. The lens is drawn as a blue surface, and the measure points as Spheres. Depending on the status of the measure points, different colors are used.
By clicking on the Points button, the display can be changed to a 2D view of the measure points. The usage is described in the next section.
Navigation in the 3D View
Rotate the view by clicking into the View, hold the mouse button and drag the mouse. Move the view by clicking into the view, hold the mouse button and press SHIFT.
Zoom: Zoom in and out with the mouse wheel.
Point and Line Selection
A point can have four statuses:

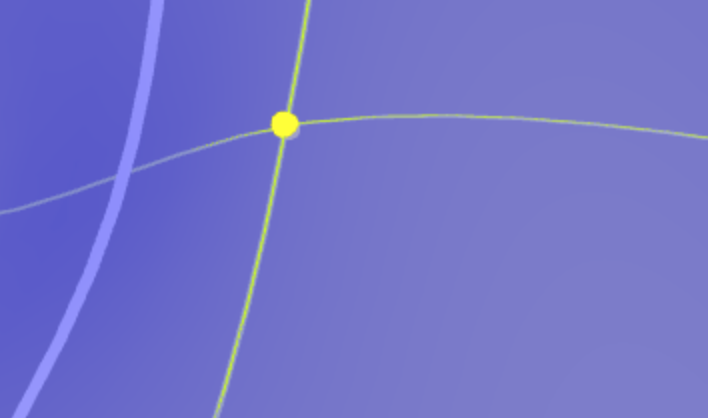

 A mandatory point is drawn as yellow sphere. |  When the point is selected its color changes to red. |

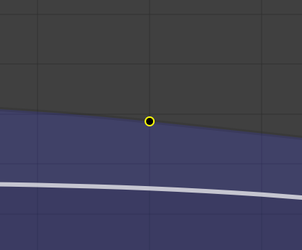

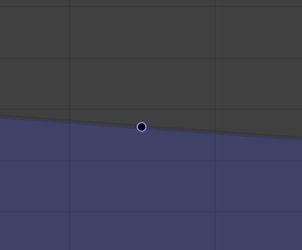

 If untouched the point is placed on the surface of the spline. A selected, untouched point is drawn as light blue. As soon as the point is moved by the operator it changes to touched. |  After selecting a point, an arrow handle is displayed over the point. |
Point Selection
Clicking at the point selects the point and changes the parameter control.
Line Selection
By hovering over a line, a red indicator is displayed. A new line can be inserted by SHIFT + Left-clicking on the line.
A line can be deleted by hovering over it, and press D on the keyboard.
A line can be moved, by hovering over it, and Left Mouse click on the line. In the Parameter Control, the zoom or focus value can then be modified (border lines can not be moved).
Point Matrix

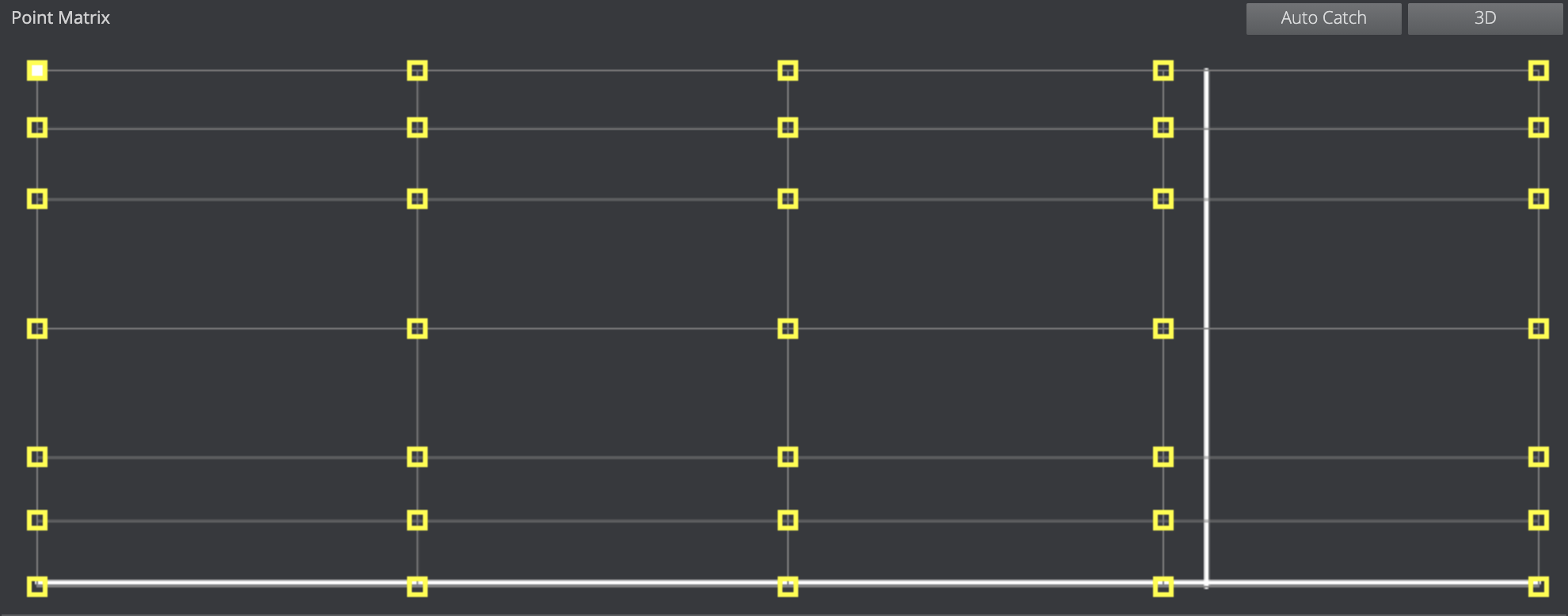

The point matrix displays all points and lines of a group. The x-axis represents the focus and the y-axis the zoom value of a point. Zoom and Focus are normalized to the width and height of the Portlet. Points can be selected by clicking on the rectangle. Lines can be selected by clicking on them.

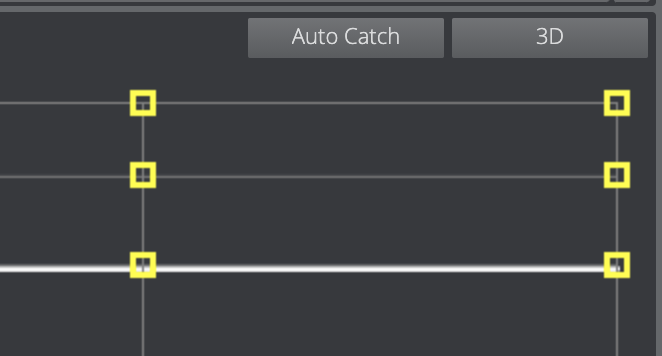

If the Auto Catch functionality is activated, the point under the cross hair is selected when the distance of zoom and focus of the point goes under a limit.
By clicking on 3D, the Point Matrix can be switched to the 3D view, which displays zoom and focus range with the actual values of the measure points. See above for how to operate in this view.

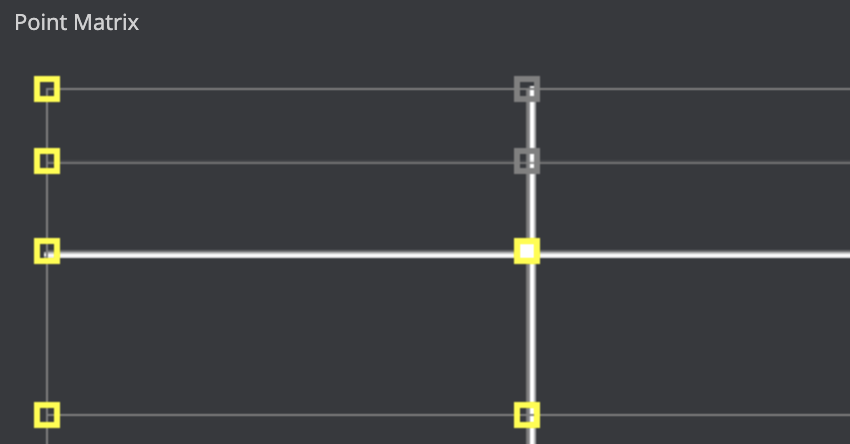

Used points are displayed as yellow rectangles, while unused points are drawn in grey. If a point is selected it is filled with white color.

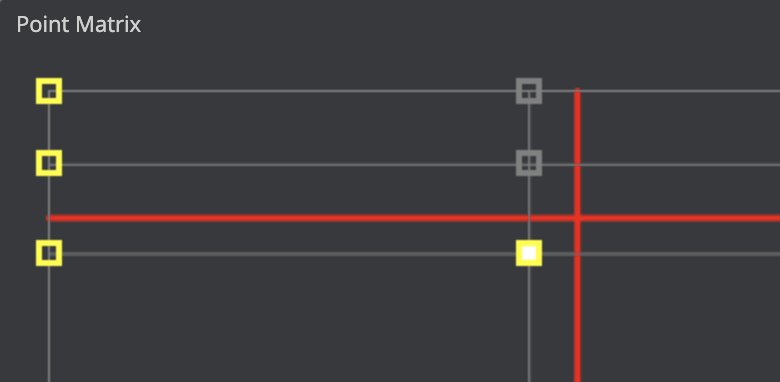

If a point is selected with the mouse and the cursor is moving, the cursor is drawn in red when the zoom and focus are out of range of the point. As soon as the cursor goes into the modification range, it is drawn in white.
2D View

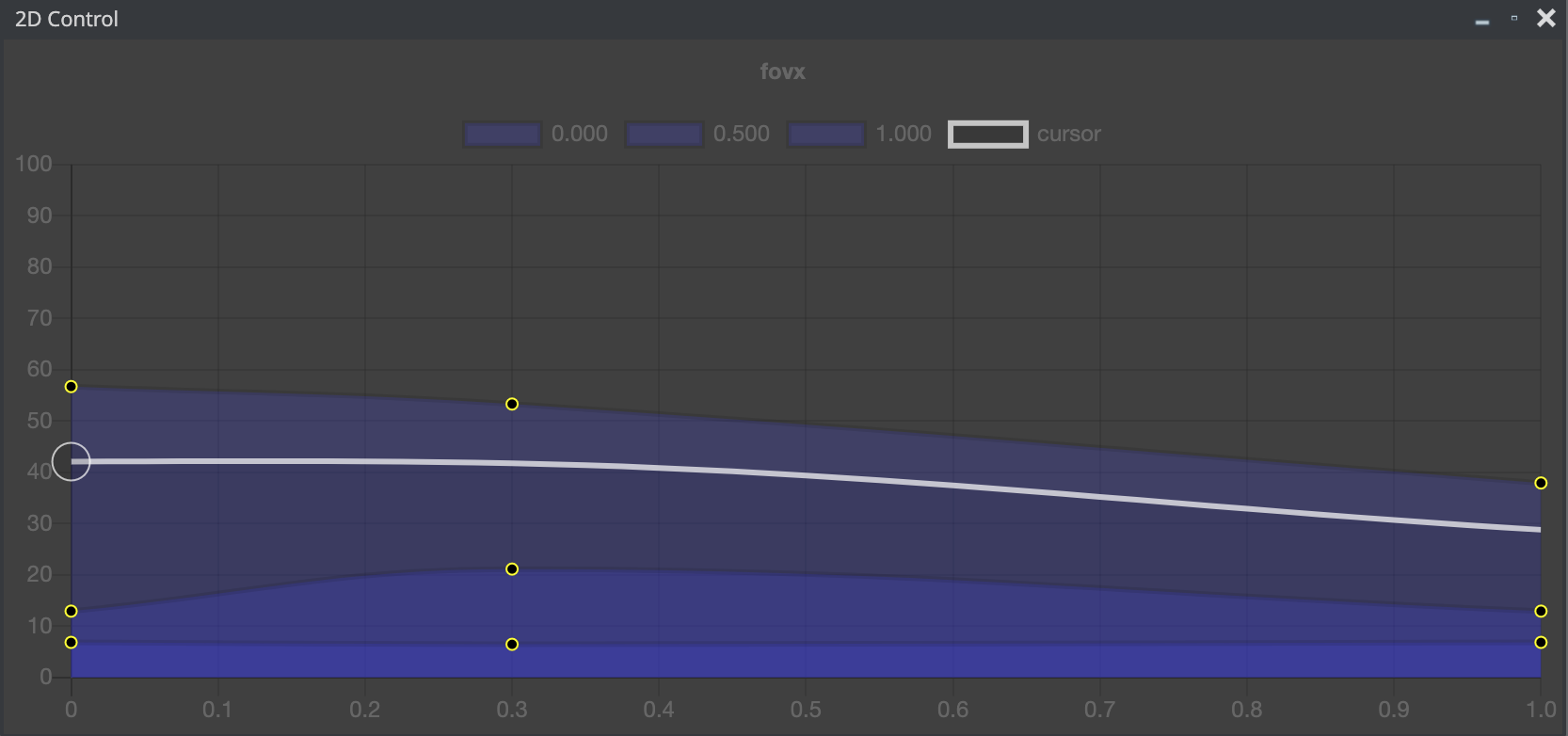

The 2D View is the main view used for calibrating the lens points. Clicking into a point selects the point in 2D View and 3D View. Dragging the point manipulates the value. Using the mouse wheel, the user can zoom in and out (and increase the accuracy of the manipulation).
Navigation in the 2D View
Move: Click with the mouse in the 2D View, press SHIFT, keep the left Mouse Button pressed and move the mouse. This moves the diagram.
Zoom: Use the mouse wheel to zoom in and out.
Different States of Points | |
|---|---|
 A point which is not mandatory and was untouched. |  A point which is not mandatory, untouched and selected. |
 An unselected mandatory or touched point. |  A selected mandatory or touched point. |
The 2D view can be switched between Zoom and Focus mode (upper right)
Shortcut System
The lens file editor implements a shortcut system, which enables the user to operate the editor with keyboard shortcuts only.
Shortcut | Change Parameter |
|---|---|
CTRL + 1 | Field of View X |
CTRL + 2 | Field of View Y |
CTRL + 3 | K1 |
CTRL + 4 | K2 |
CTRL + 5 | Center X |
CTRL + 6 | Center Y |
CTRL + 7 | Nodal |
CTRL + 8 | Depth of field |
Q | Increases the value of the selected point for 1/1000th of its actual value |
A | Decreases the value of the selected point for 1/1000th of its actual value |
W | Increases the value of the selected point for 1/100th of its actual value |
S | Decreases the value of the selected point for 1/100th of its actual value |
E | Increases the value of the selected point for 1/10th of its actual value |
D | Decreases the value of the selected point for 1/10th of its actual value |
ALT + Cursor Keys | Moves selected point for one row or column |
Troubleshooting
If you are not able to connect locally to the lens file editor web page, please verify the proxy settings of Internet Explorer.
