The metagraphics workflow is available for the Avid and Adobe platforms:

  • Avid lets you export sequences with metagraphics (for Windows only, as Avid Assistant is for Windows only).

  • For Adobe, both import and export metagraphics is available (for Windows and Mac).

Avid Media Composer

Exporting Metagraphics

For a Vizrt graphics effect to be exported as a metagraphic, the Burn-in checkbox must be unchecked in the Vizrt Graphics Plugin effect:


If this checkbox is checked, the normal workflow of graphics burn-in is used.

Info: For more information about the metagraphics workflow, see the Exporting Metagraphics section of the Graphics Plugin User Guide.

Note: Exporting sequences with metagraphics is only available if Avid Assistant is installed.

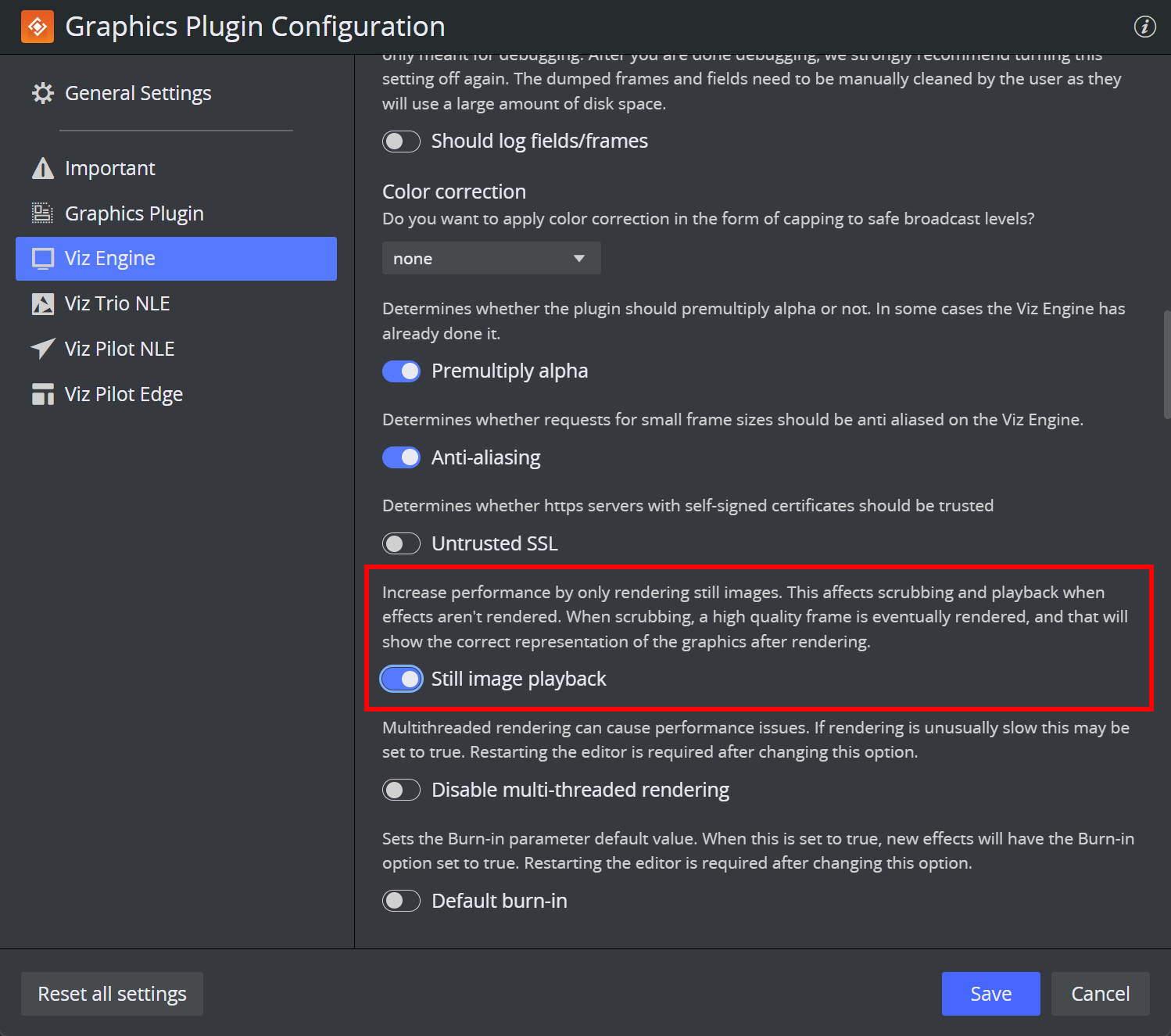

Previewing Metagraphics

You can enable a static preview when metagraphics is enabled, saving resources.

  1. Open the Configuration tool.

  2. Select Graphics Plugin.

  3. Check the Still image playback checkbox.


Info: For more information about still image playback, see the Adobe/Avid/Edius Settings section in the Graphics Plugin User Guide.

Adobe Premiere

For Adobe Premiere, metagraphics are configured in Adobe Assistant. See the Adobe Assistant documentation for more information.
